Description

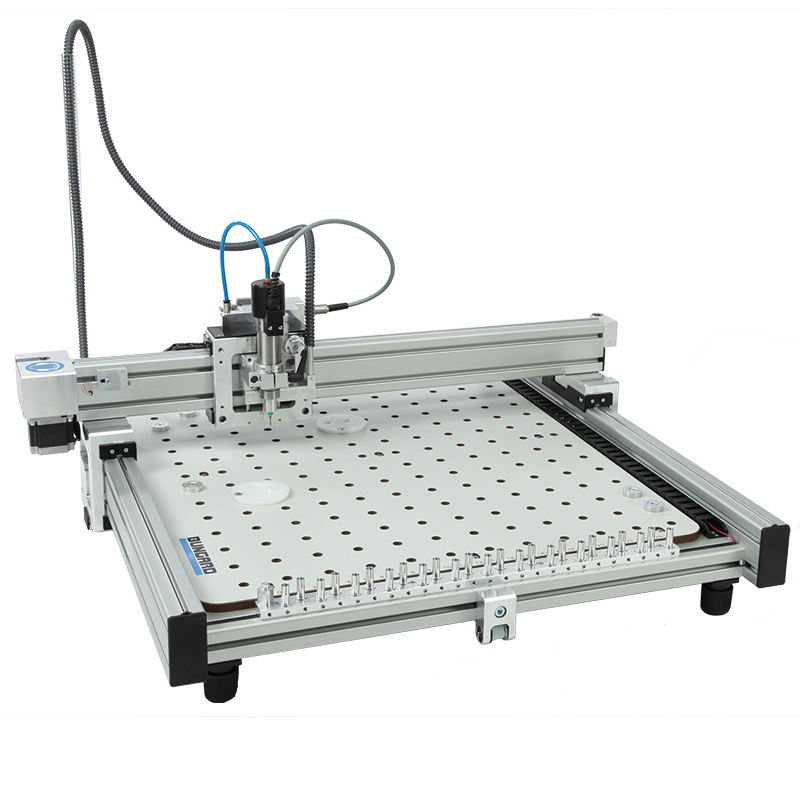

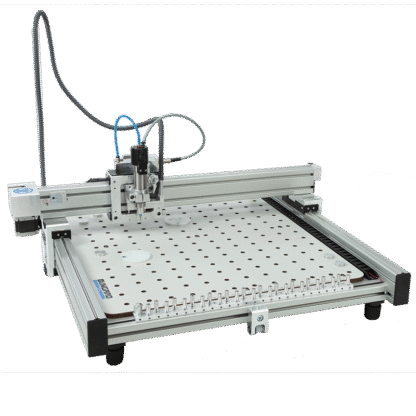

The Bungard CCD/ATC/XL is a high quality Computer Controlled Drilling machine with Automatic Tool Change (ATC). The ATC/XL as well as all other CCDs allows directly processing of Excellon / Sieb&Meyer drill data or HP/GL route data for producing PCBs (drilling, cut-out-routing, isolation milling) or routing/ engraving plastics, aluminium and other metals.
The CCD/ATC/XL differs from the CCD/MTC/XL by the automatic 25-slot tool changer. The work space is the same. Compared with the CCD/ATC the XL has a larger work space (500×600 mm in contrast to 495×325 mm with the CCD/ATC) and the number of tool slots (25 instead of 16).
The ATC is ideal for very big and complex PCBs with many different drill sizes and for special applications.
